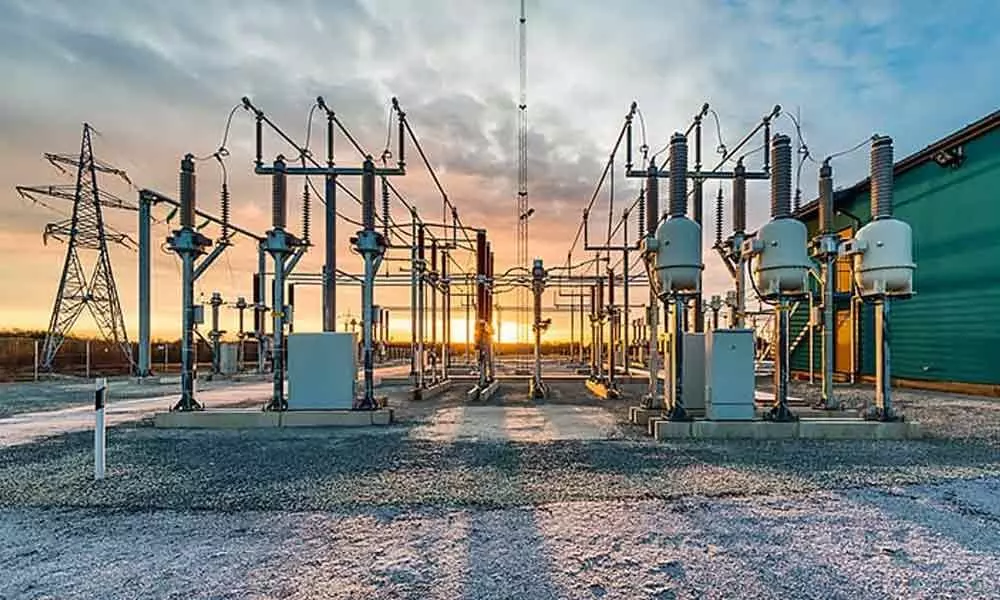

Complete Electrical Sub-Station
Definition: The electrical substation is the part of a power system in which the voltage is transformed from high to low or low to high for transmission, distribution, transformation and switching. The power transformer, circuit breaker, bus-bar, insulator, lightning arrester are the main components of an electrical substation.
Single Line Diagram of an Electrical Substation
The single line diagram of the substation is shown in the figure below.The connection of the substation is divided as
- Incoming or power feeder connection
- Outgoing feeder for feeding the other subsequent substations or switchgear.
- Power transformer connection.
- Voltage transformer connection for control and metering.
Selection and location of a site for an Electrical Substation
The following factor is considered while making site selection for a substation.
- Type of substation – The category of the substation is important for its location. For example, a step-up transformer is a point where power from various sources is pooled and step up for long distance transmission should be located as cool as possible to minimise the losses. Similarly, the step-down transformer should be located nearer to the load centre to reduce transmission losses, the cost of the distribution system and better reliability of supply.
- Availability of suitable and sufficient land – The land selected for a substation should be level and open from all sides. It should not be waterlogged particularly in the rainy season. The site selected for substation should be such that approach of transmission lines and their take off can be easily possible without any obstruction. The places nearer to airdrome, shooting practice ground, etc. should be avoided.
- Communication facility – Suitable communication facility is desirable at a proposed station, both during and after its construction. It is better, therefore, to select the site alongside the existing road to facilitate an easier and cheaper transportation.
- Atmospheric Pollution – The atmosphere around the ground factories produces metal corroding gas, air fumes, conductive dust, etc. And the area near the sea coast may be more humid and is harmful to the proper running of the power system. Thus, the substation should not be located near the factories or sea coast.
- Availability of Essential Facilities to the Staff – The site should be such where staff can be provided essential facilities like school, hospital, drinking water, housing, etc.
- Drainage Facility – The site selected for the proposed substations should have proper drainage arrangement or the possibility of making effective drainage, avoid pollution of air and growth of micro-organism and health
